Wear resistant composite steel plate

Chramium Carbide Wear Resistance Steel Plate .

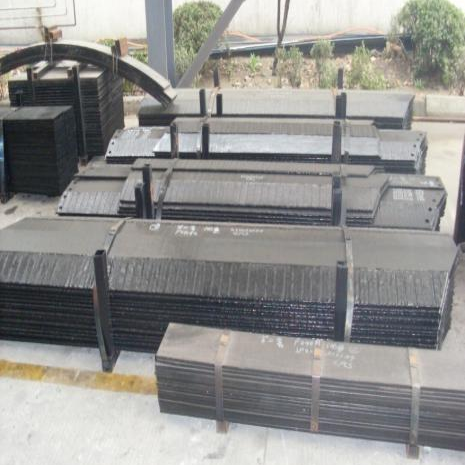

JN Plate is chromium carbide overlay welded on the special mild steel backing plate. It is manufactured by our own special design machine, with exclusive technique, that results in very flat and smooth surface of our plates.

Inquire

Product Description
Specification

Product Description

Chramium Carbide Wear Resistance Steel Plate :

Specification

Product Briefing

Standard Thickness(mm)	Standard Dimension(mm)	Backing Plate
3+2、3+3	15003000mm 12002400mm (Description of nominal) X+Y X(Base plate) Y(Overlay)	Standard backing plate is structural steel plate. Others backing plate i.e. heat resistance steel, stainless steel are available upon request.
4+4 、5+3
6+4、6+6
8+4、8+5、8+6、8+8
10+5、10+6、10+8、10+10、10+20
12+6、12+8、12+10、12+12

Technical Parameters

C	Cr	Other	Hardness	Thickness H	Suggestion ofbendingRadius (mm)	Remarks
2.5~6%	13~35%	Si,Mn	HRC52-64	H士5%	(inward)R>150mm (outward)x2	The selection of alloy content allows for the production of high and low-grade products
~5%	~22%	Nb,Mo,W,V		H士5%		Special requirements for temperature/impact resistance of boards
